• Can power up to 16 PowerView Gen 3 window treatments.
• Barrel connector ports on the outside of the enclosure provide easy access.
• Mounting feet on the outside of the enclosure streamline the mounting process.
• Pre-drilled knockouts provide easy wire access to the interior of the enclosure.
• Compatible with both surface-mount and recessed-mount applications.

• One NEMA enclosure with power supply, cover and cover screws (cover pre-installed onto NEMA enclosure)
• One 6' IEC power cord
• One 1/2" strain relief and one 11/4" strain relief
• Four packages of Quick-Lever Barrel Connectors, female (32 total count) Four mounting feet (pre-installed onto NEMA enclosure)
• Installation guide

• Input: 120V AC, 6A
• Output: 18V DC, 90 Watts
• Wire compatibility: 14 – 18 AWG wire
• Circuit class: 2
• Temperature range: -22 °F to 158 °F (-30 °C to 70 °C).

• Length

— 110" (without mounting feet)

— 121/4" (with mounting feet)

• Width: 10"
• Depth: 41/4"
• Weight: 10 lbs.

• Each 16 Shade DC Power Supply can power a maximum of 16 individual shades of any type, including: Duolite, Independent Operable Liner, and
• A Deux options. However, Dual Roller and Aura Illuminated Shades are the exceptions. Dual Roller products count as two shades — they have separate motor cables and appear as separate shades in the app. Aura Illuminated Shades also count as two shades for power draw, with a maximum of 8 shades per power supply, but each Aura shade has one motor cable and appears as a single shade in the app.
• Do not daisy-chain shades when using the 16 Shade DC Power Supply.

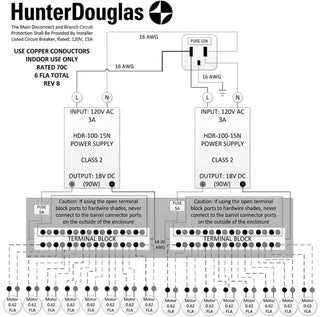

The primary method of making the connections between the 16 Shade DC Power Supply and automated window treatments is using a combination of Quick Lever Barrel Connectors and low-voltage electrical wiring. For wiring, the power conductors in the PowerView+™ Bulk Cable are the perfect solution for this application.

Barrel Connectors are used to create the custom cables that supply DC power to PowerView motors.

• Use 14, 16, or 18 AWG low-voltage electrical wire for the custom cable.
• Custom cables are primarily used to establish a power connection between the terminal blocks on the 16 Shade DC Power Supply and the shade motor’s power cable.
• The Quick-Lever Barrel Connector is required to connect the custom cable to the male barrel connector on the motor’s power cable.
